Full Step Refurbishment Programme

About Our Full Step Refurbishment Programme

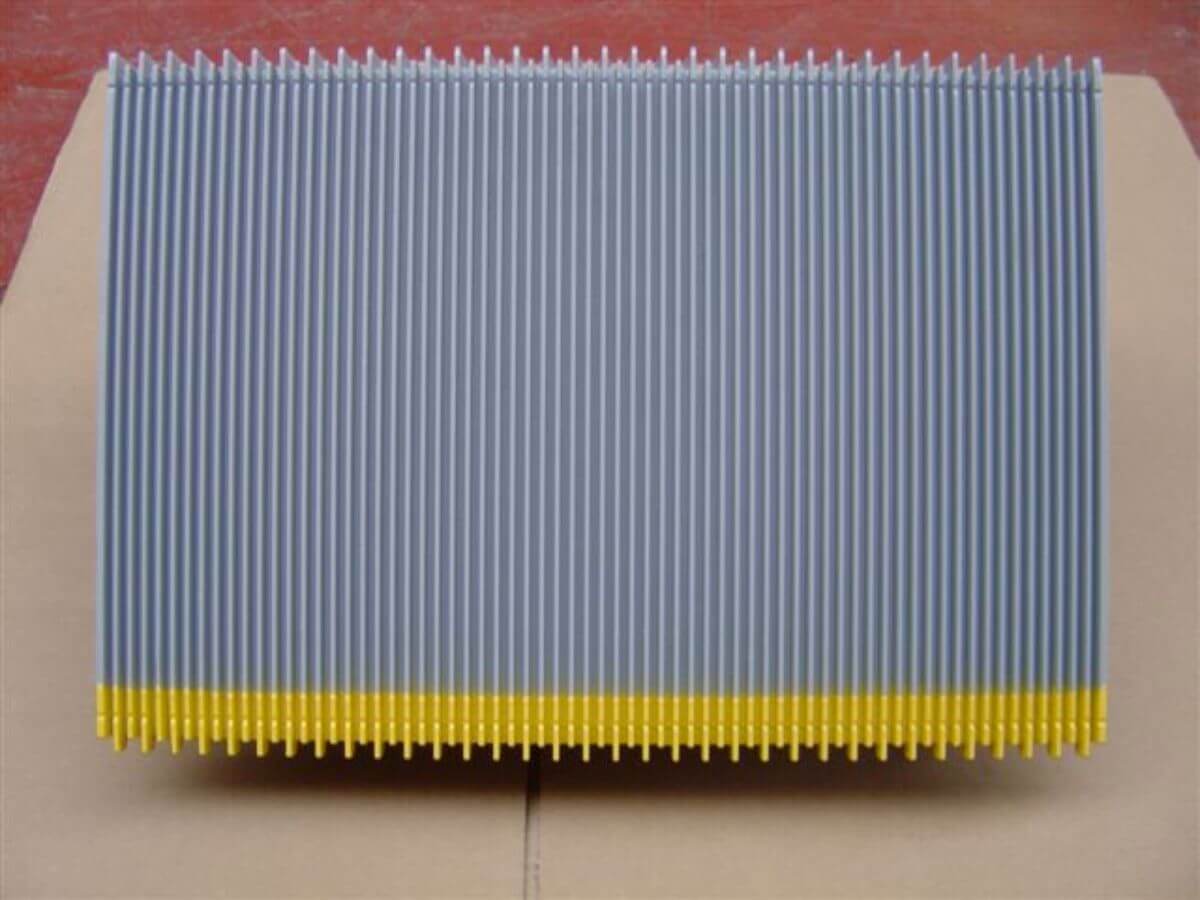

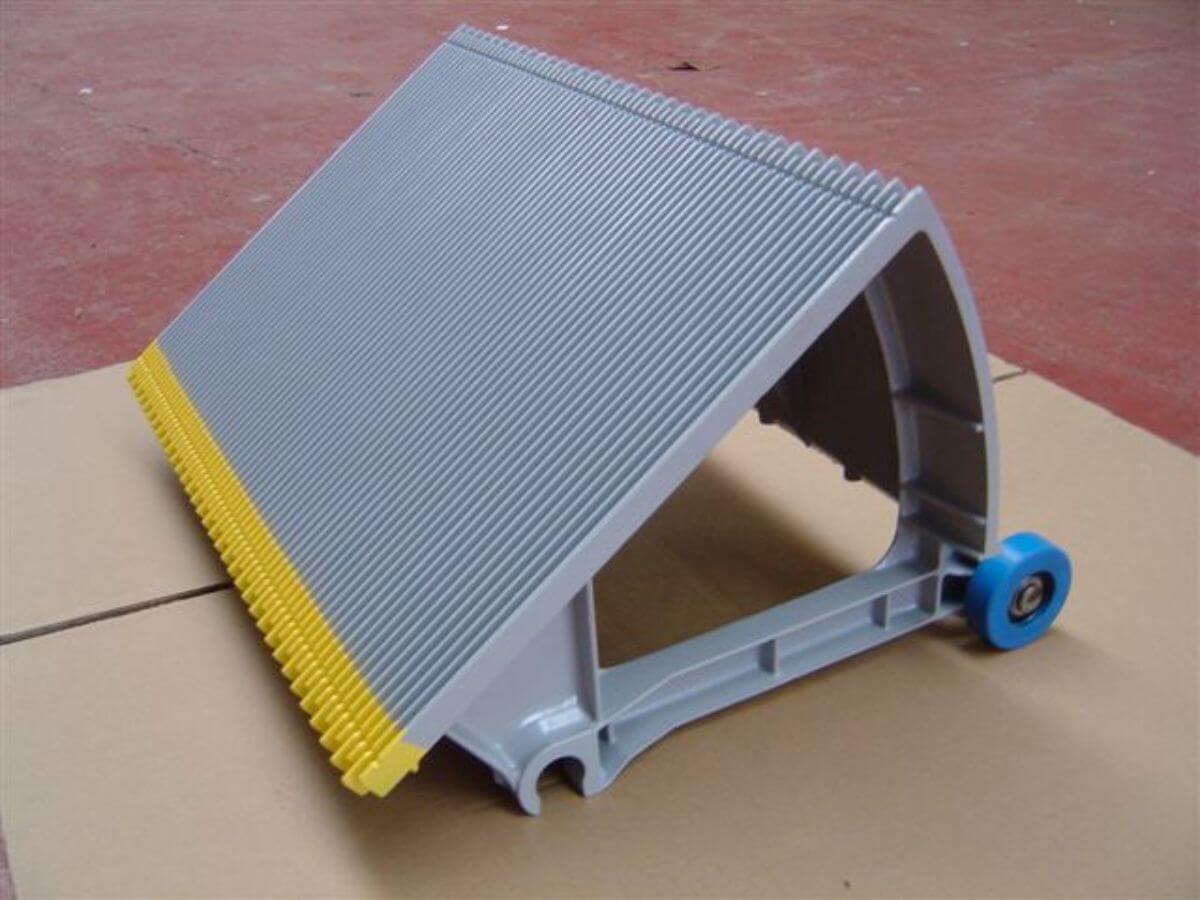

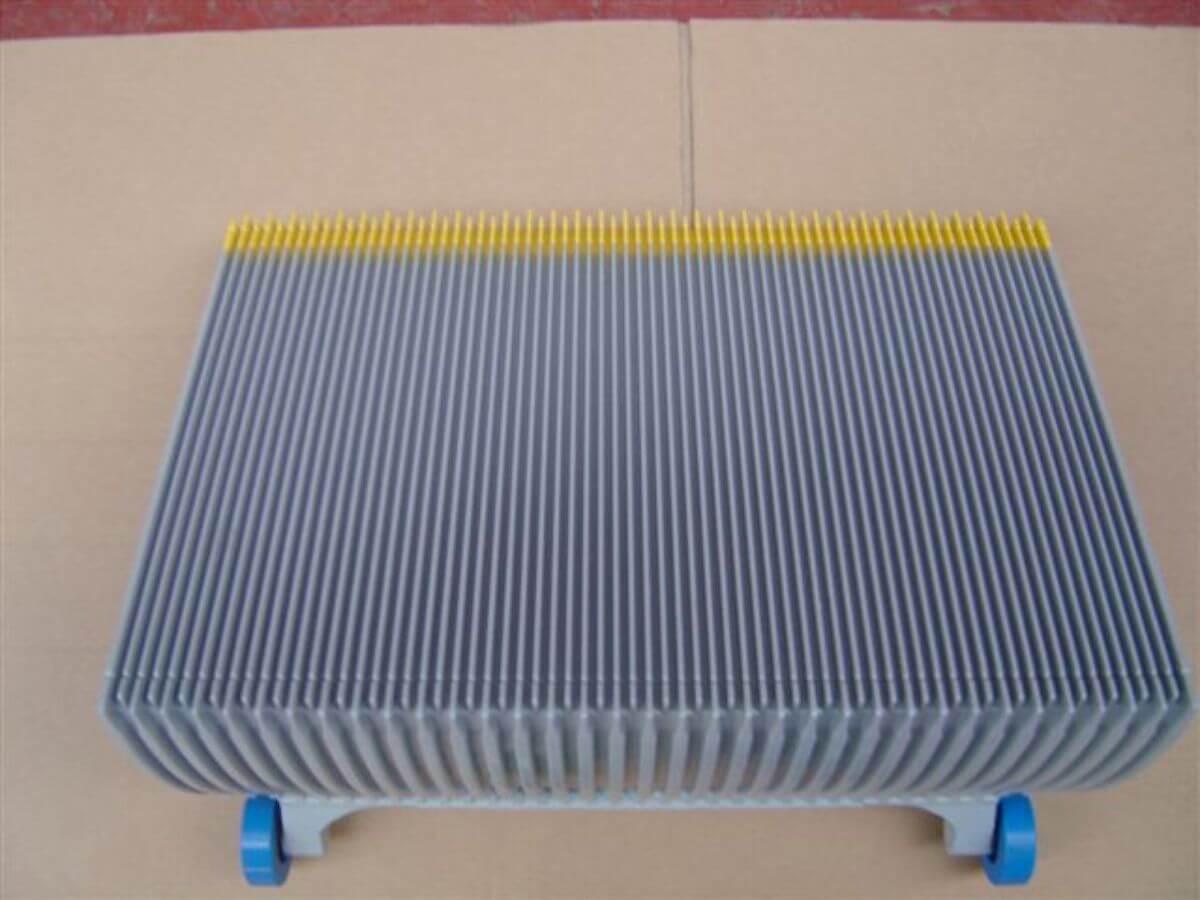

A total escalator step refurbishment with a tough powder coat finish.

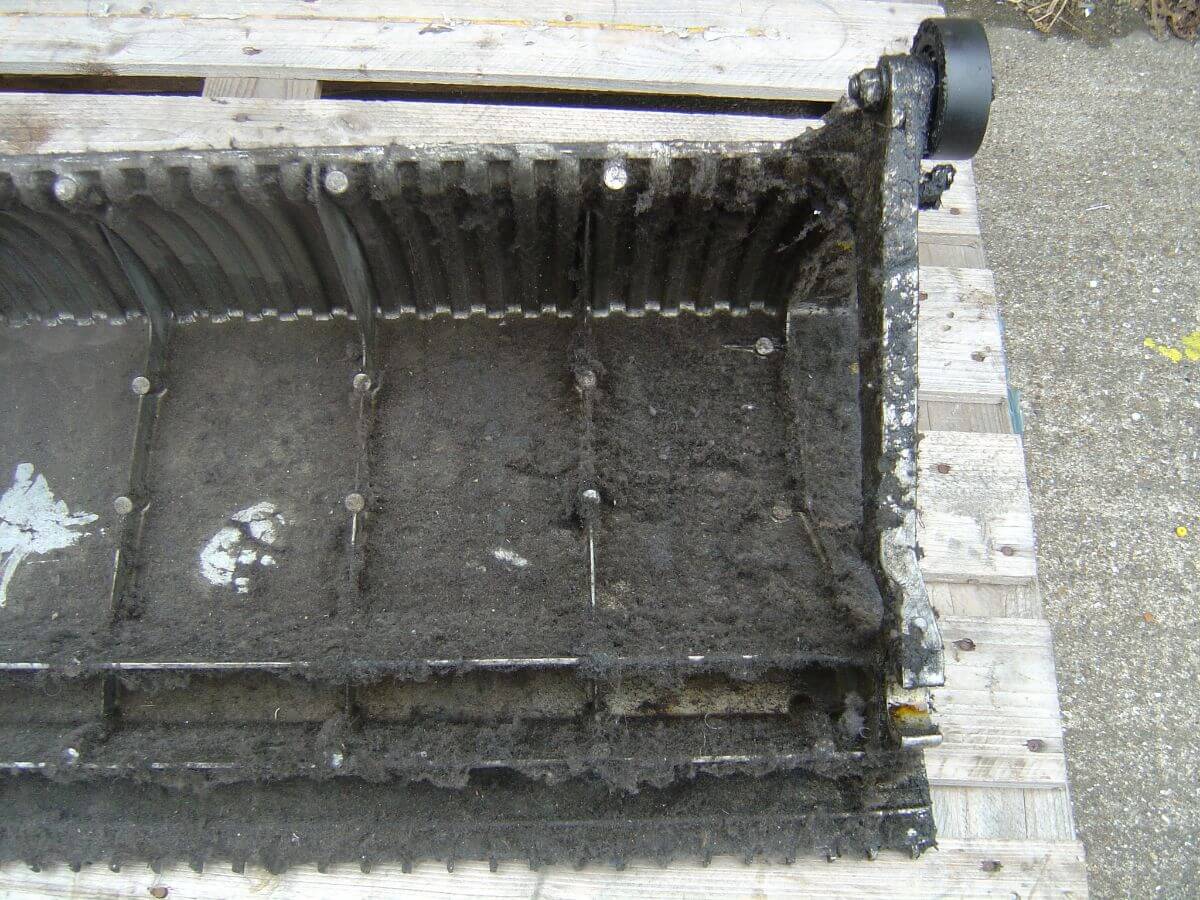

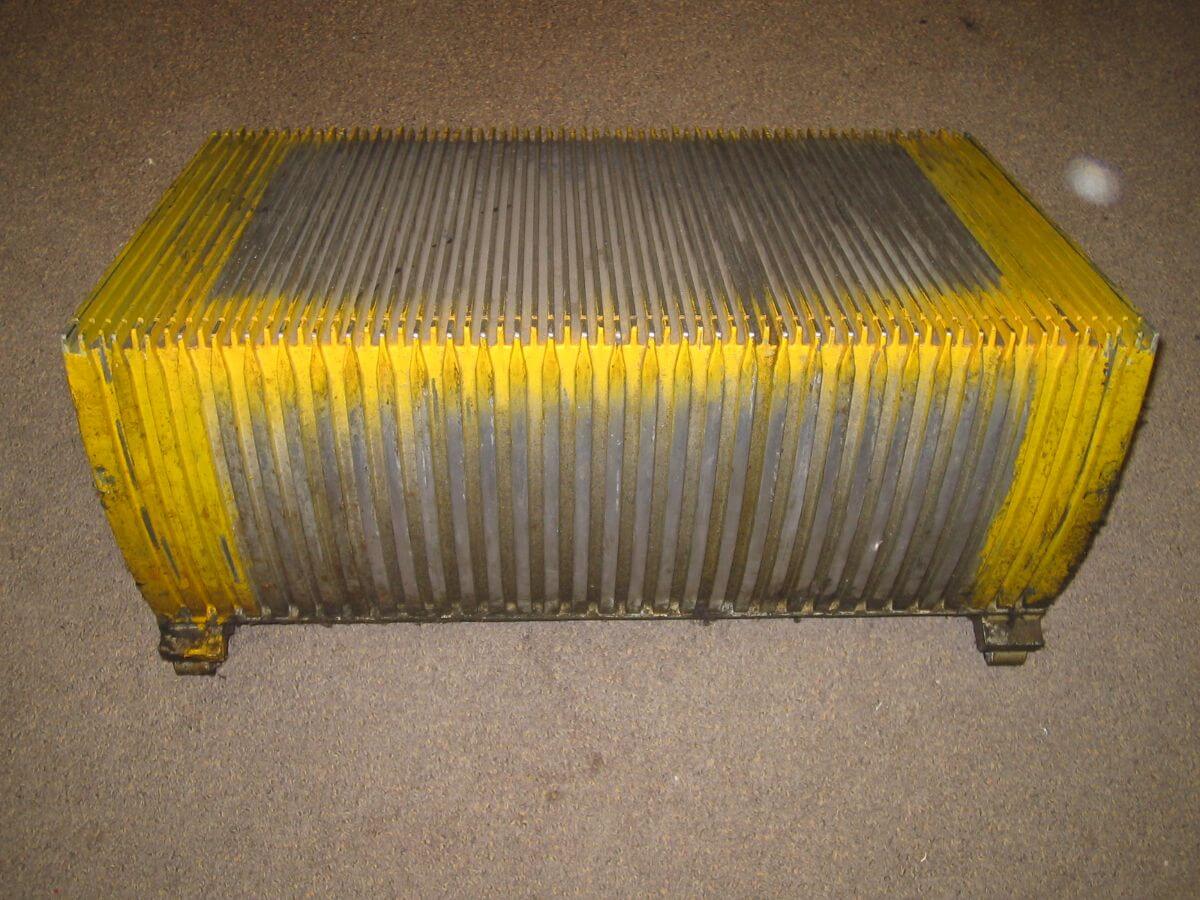

When your escalators are in very poor condition, ESD can provide total step refurbishment to return steps to ‘as good as new’ -in fact some customers have said better than new condition!

 Working in conjunction with your escalator maintenance company the typical procedure is:

Step 1: Your escalator steps are removed by your maintenance company and collected by ESD to transport to our step refurbishment facility.

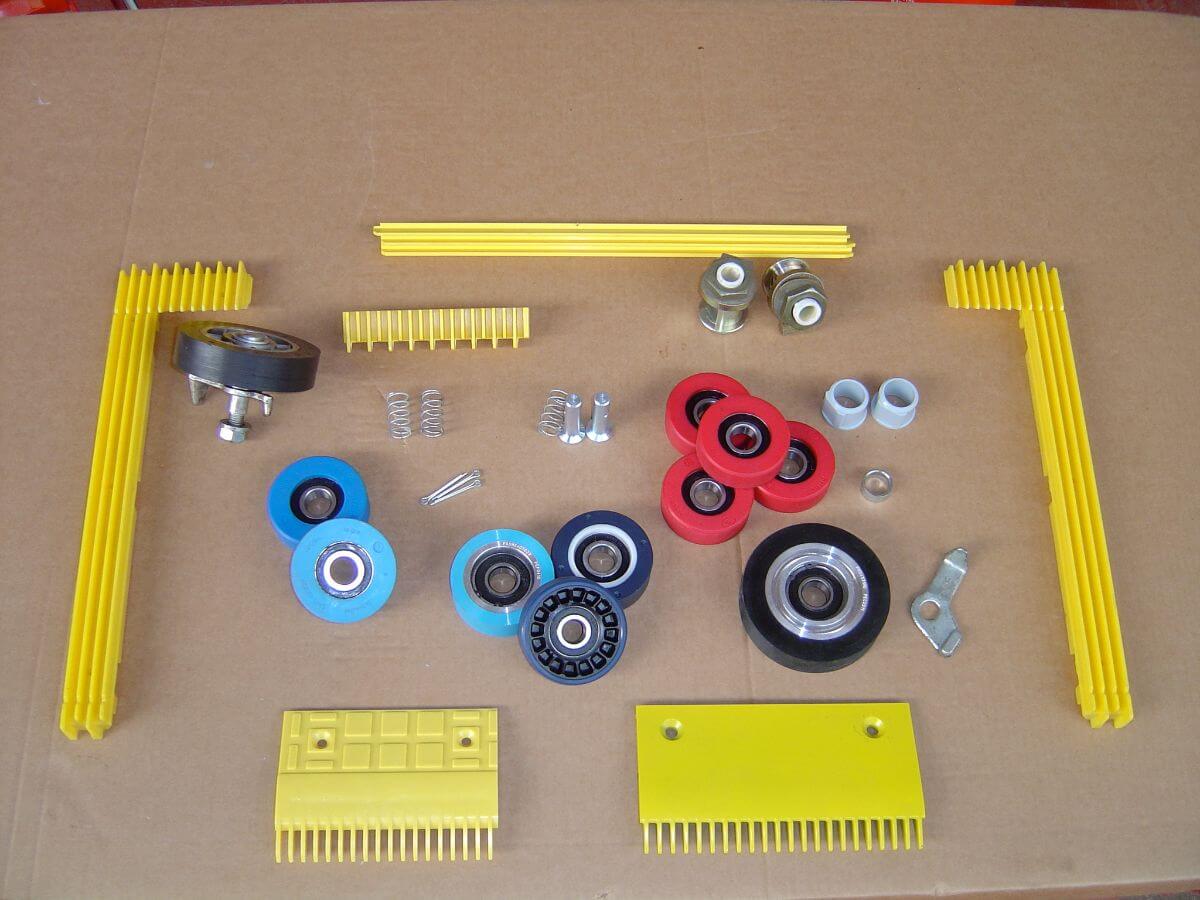

Step 2: The step components such as rollers, plastic inserts and locking mechanisms are removed from the step.

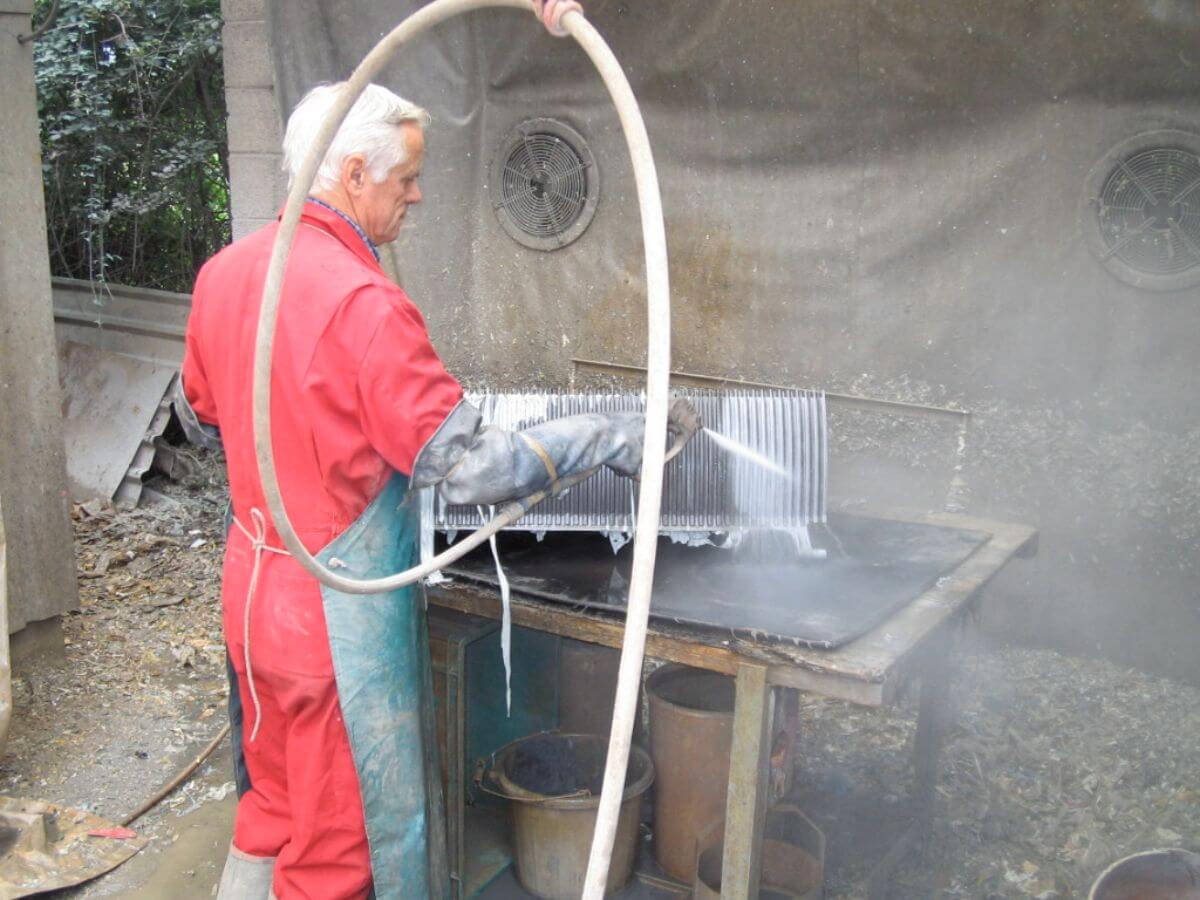

Step 3: All steps are cleaned and degreased.

Step 4: Steps are bead blasted to remove the existing coating and all surface contaminants.

Step 5: At this stage any damage to the steps ribs can be repaired. Worn/sharp ribs are welded and then machined back to size.

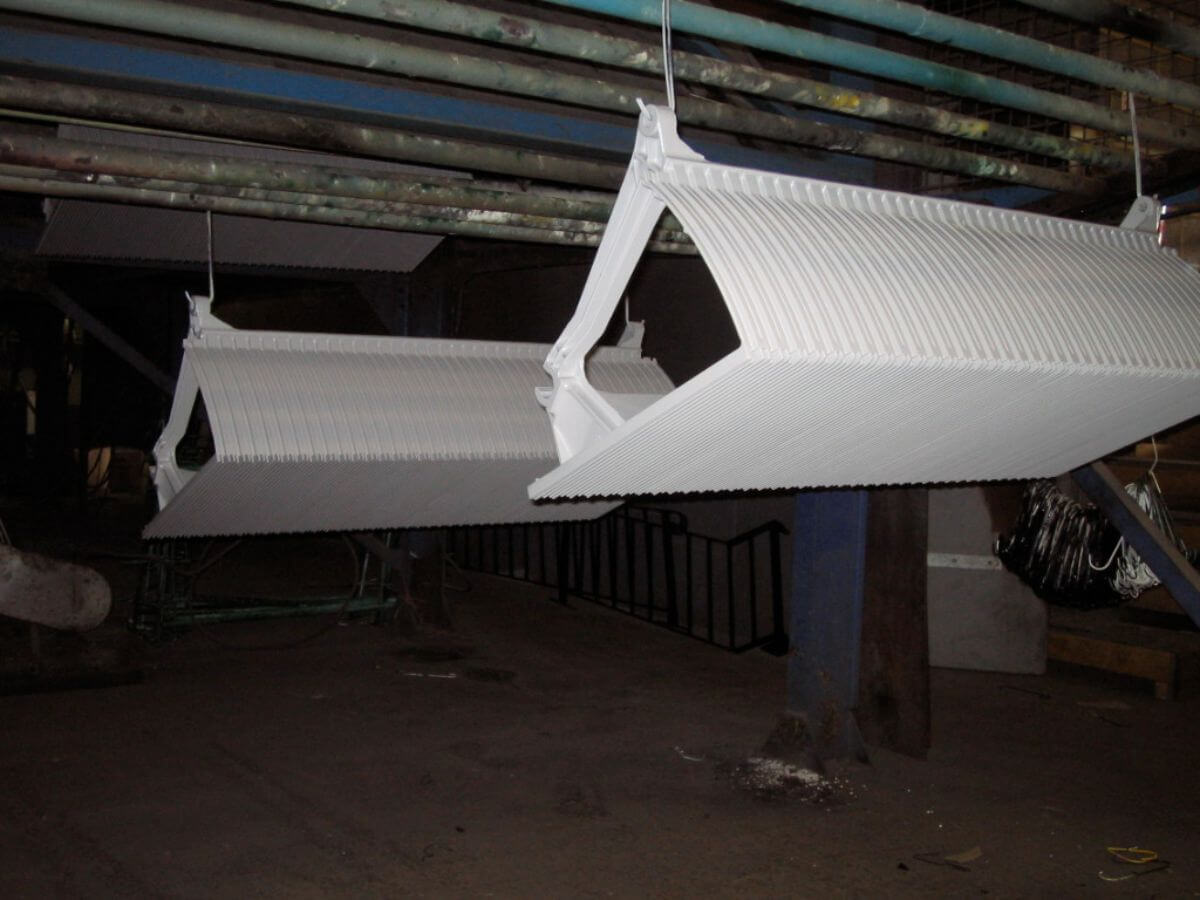

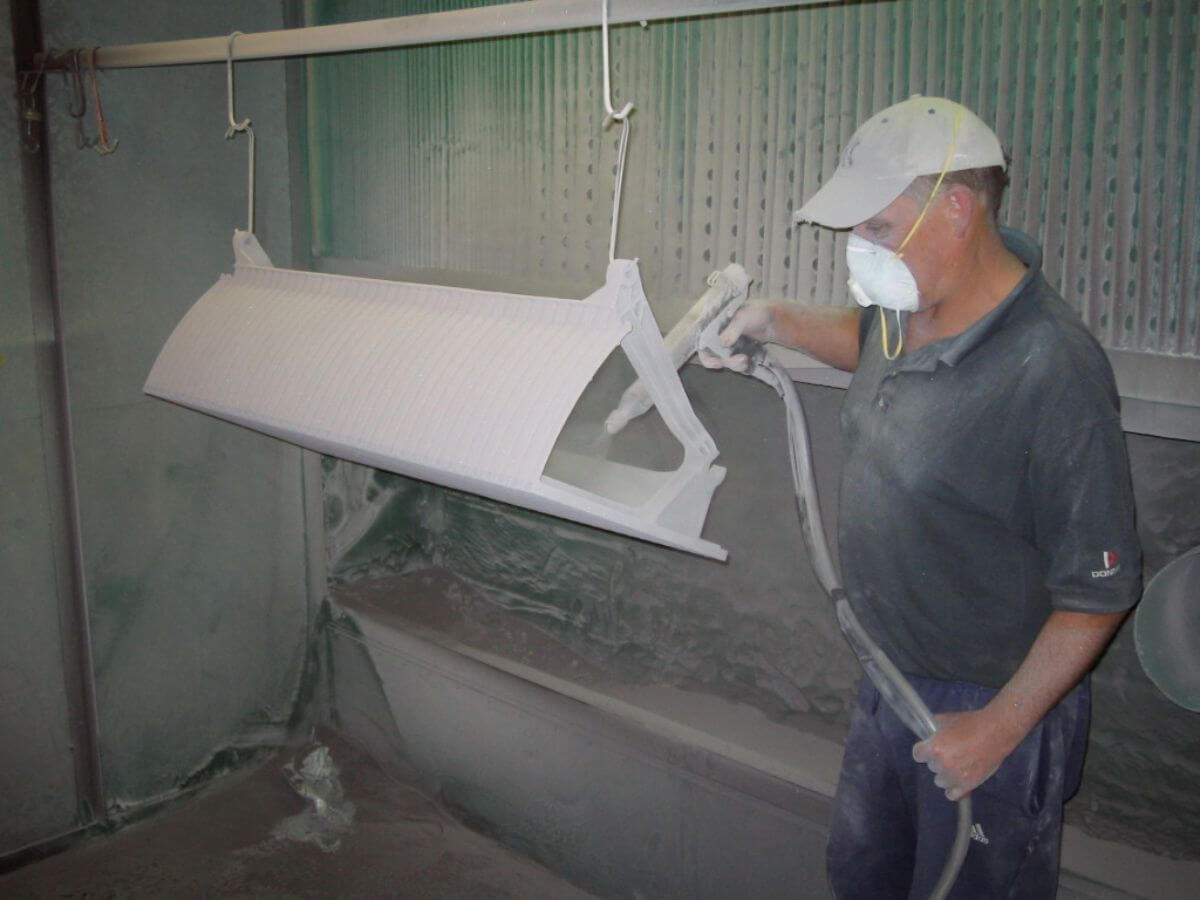

Step 6: The stripped and repaired steps are powder coated in your chosen colour.

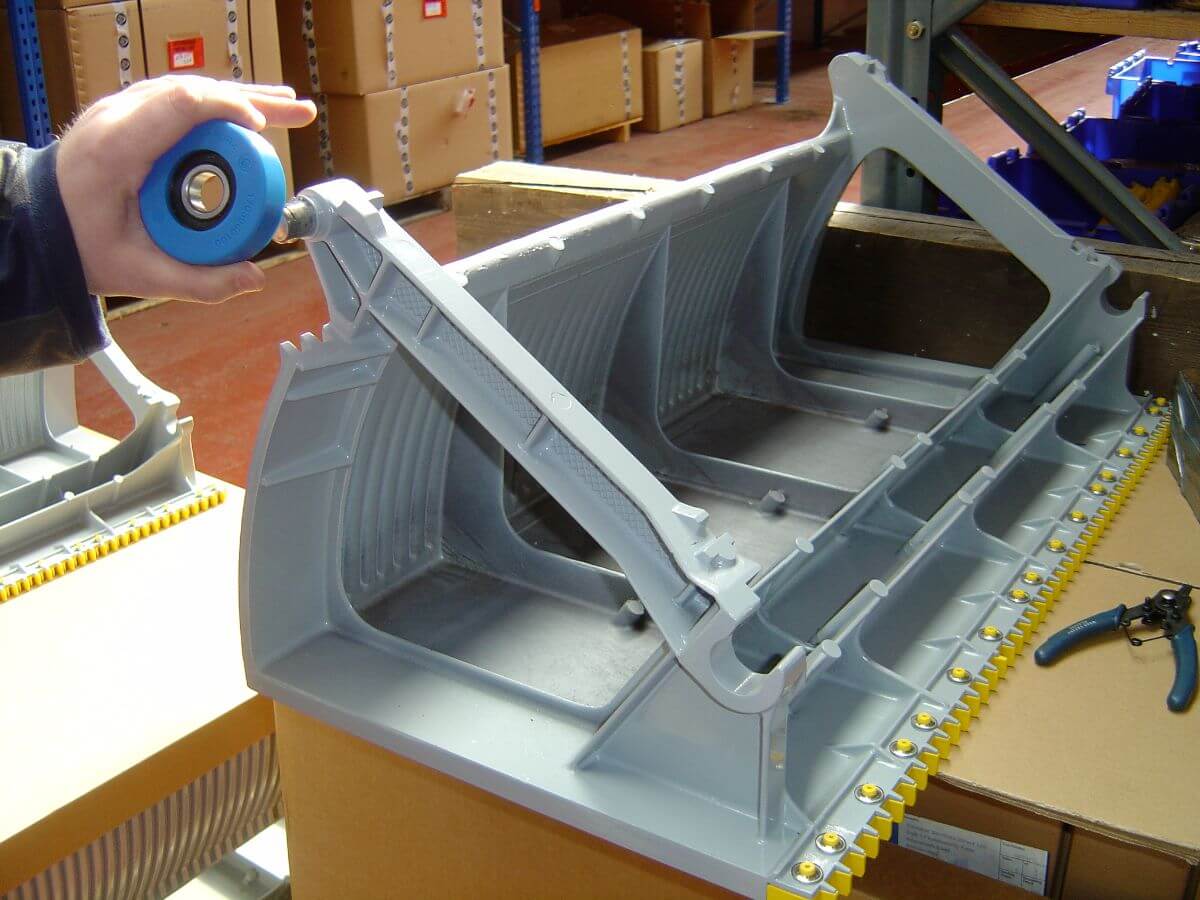

Step 7: The steps are reassembled and new rollers are installed. New rollers will make the escalator quieter and reduce the likelihood of breakdowns.

Step 8: The steps are securely packaged and returned to site to be reinstalled in your escalator.
